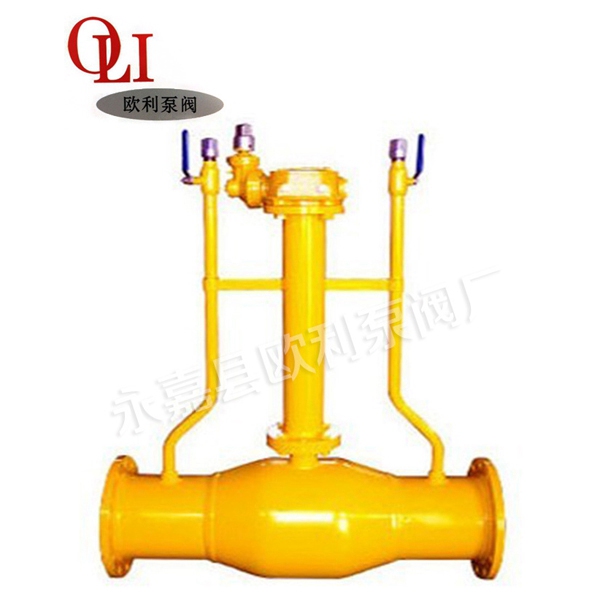

Flange of the exhaust buried fully welded ball valve

				Dateline:2014-11-30    Hits:


    Size: full size & standard size DN15 (1/2 ") of 750 ~ DN (30")
    Pressure rating: ANSI Class 150 ~ 300, 16 ~ 50 PN
    Working temperature: -29 degrees C (-20 degrees F) ~ +200 degrees C (392 degrees F)
    To adapt to the medium: gasoline (LNG / LPG)
    Mode of operation: the handle, gear (vertical / horizontal), electric
    Advantage:
    L international certification and standards
    L (liquefied natural gas to gasoline / LPG) specifically designed for pipe applications
    L and pipeline system with life
    L free repair, do not need to adjust or lubricating oil, low operation cost
    L two-way valve
    L can be used for special coating corrosion
    The main features of:
    The L end is connected with one end of the valve body pipe (Note: is used for connecting the end dimensions: ASTM, EN, KS/JIS etc.)
    The L mirror polished stainless steel ball to test
    L bubble tight sealing and physical carbon enhanced PTFE (Teflon) seat
    L pre load spring cushion to ensure low temperature leak tight and reducing the valve operating torsion
    According to the international standard L against burst valve stem
    L two O ring to ensure that the valve stem seals and can replace
    L stem dry automatic lubrication bearing capacity and metal with PTEF coating,without additional lubricant
    L stem and port connection pipe can be extended according to customer design requirements.
    Material:
    L valve: carbon steel ST37, A106-B, STPG 370, A105, ASTM A516-60, A216-WCB or equivalent. Stainless steel 304 or 316 (to choose)
    The L sphere: stainless steel 304 or 316 level
    L seat: PTFE, enhanced PTFE, Nylon, Peek etc.
